OUR EQUIPMENT

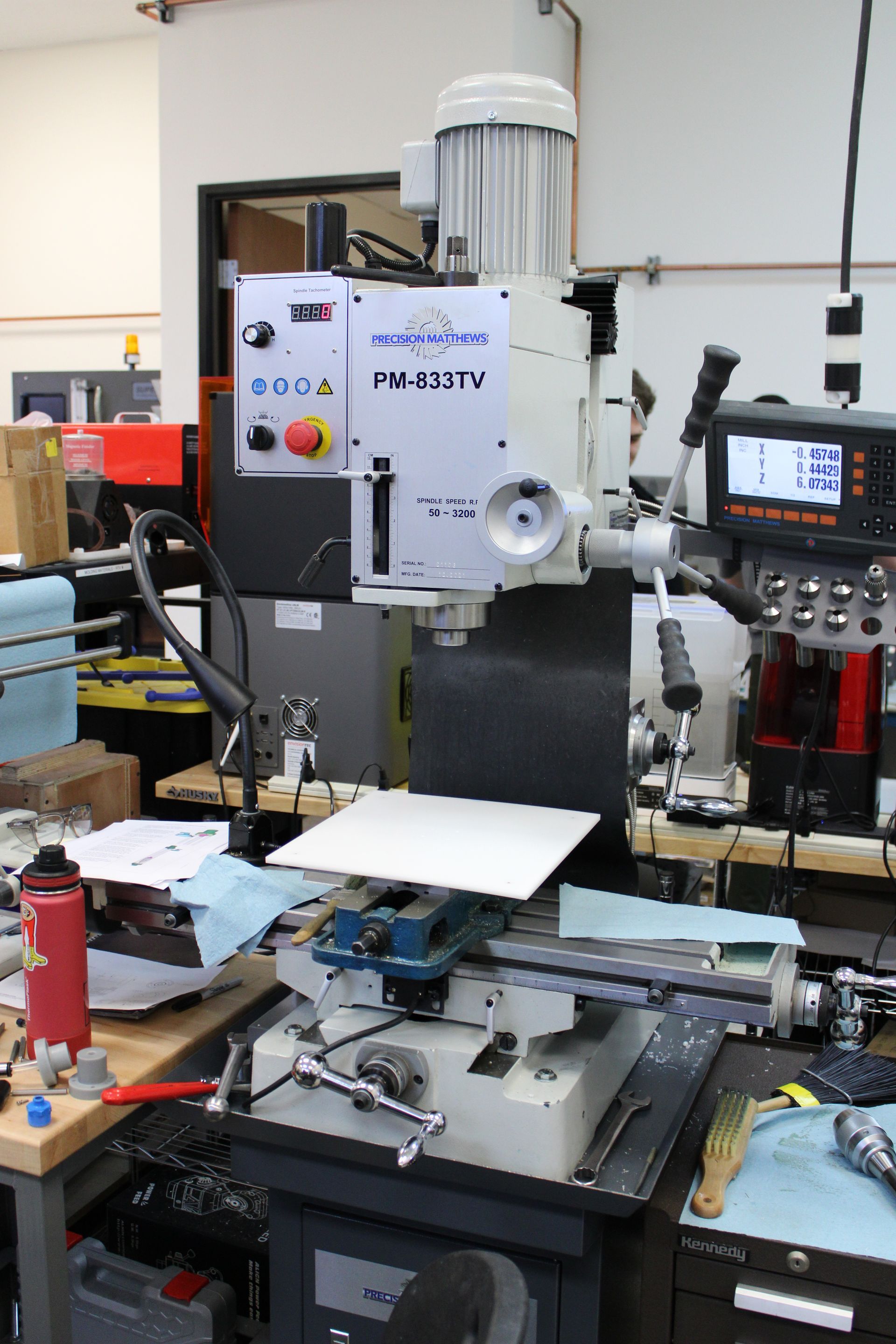

X Axis Travel:  21-3/4” Max

Y Axis Travel:      11” Max

Z Axis Travel (Head): 17-1/2” Max

Max. Distance, Spindle to Table: 20-1/2” Max

Leadscrew Pitch: .100” (10 Threads Per Inch)

Dial Graduations:   .001”

Main Motor HP:               2 HP

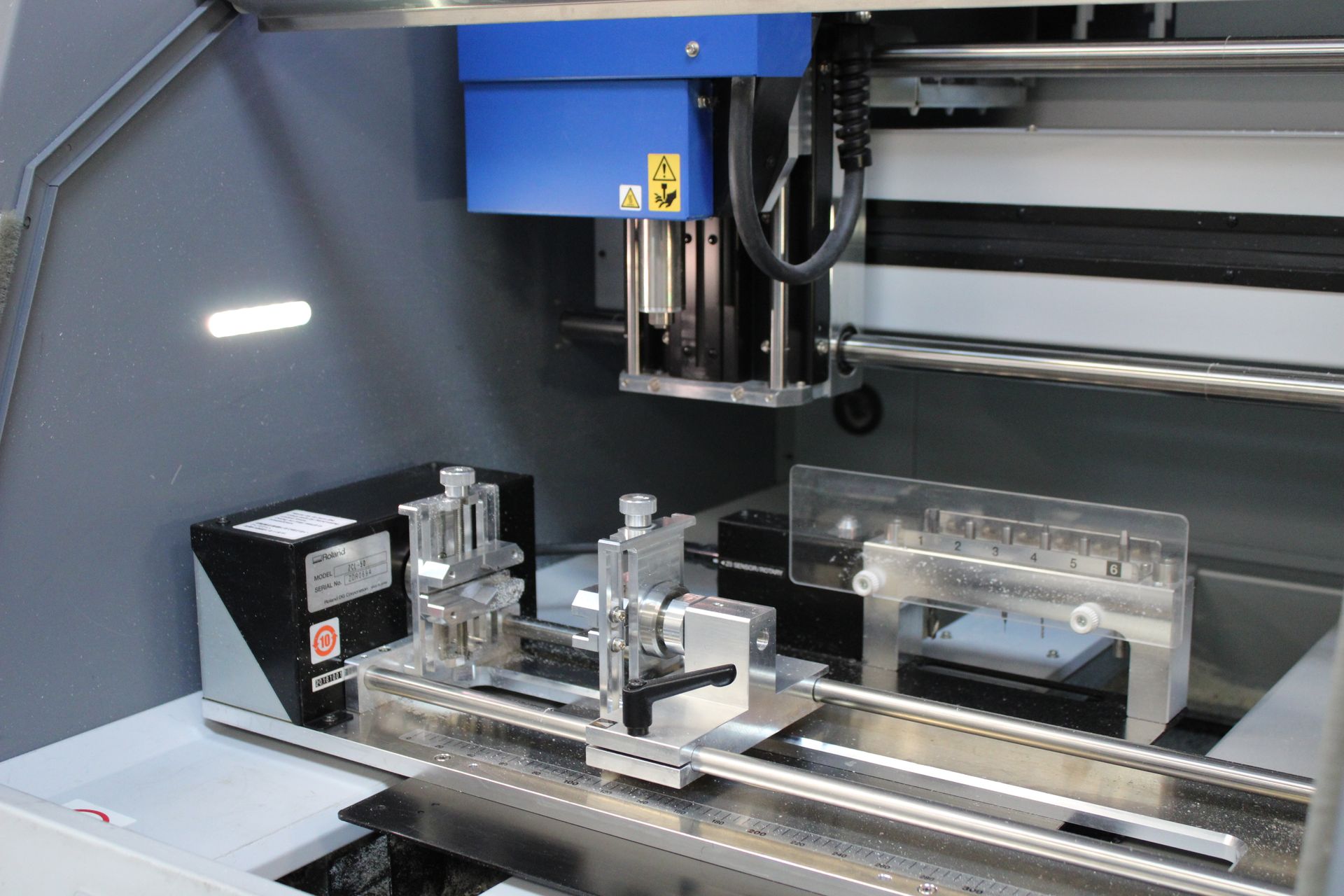

Loadable workpiece size

X: 15.80in (400mm) Y: 12.00in (305mm) Z: 3.90in (100mm)

Feed rate:  XY: 0.3in to 141.7 in/min (7 to 3600mm/min) Z: 0.3 to 118.1 in/min (7 to 3000 mm/min)

Mechanical resolution: 0.01 mm/step

(0.39 mil/step; half step)

Spindle rotation speed:  4500 ～ 15000 rpm

ATC Magazine Capacity:  5 Tools + 1 Detection pin (6 Position Capacity)

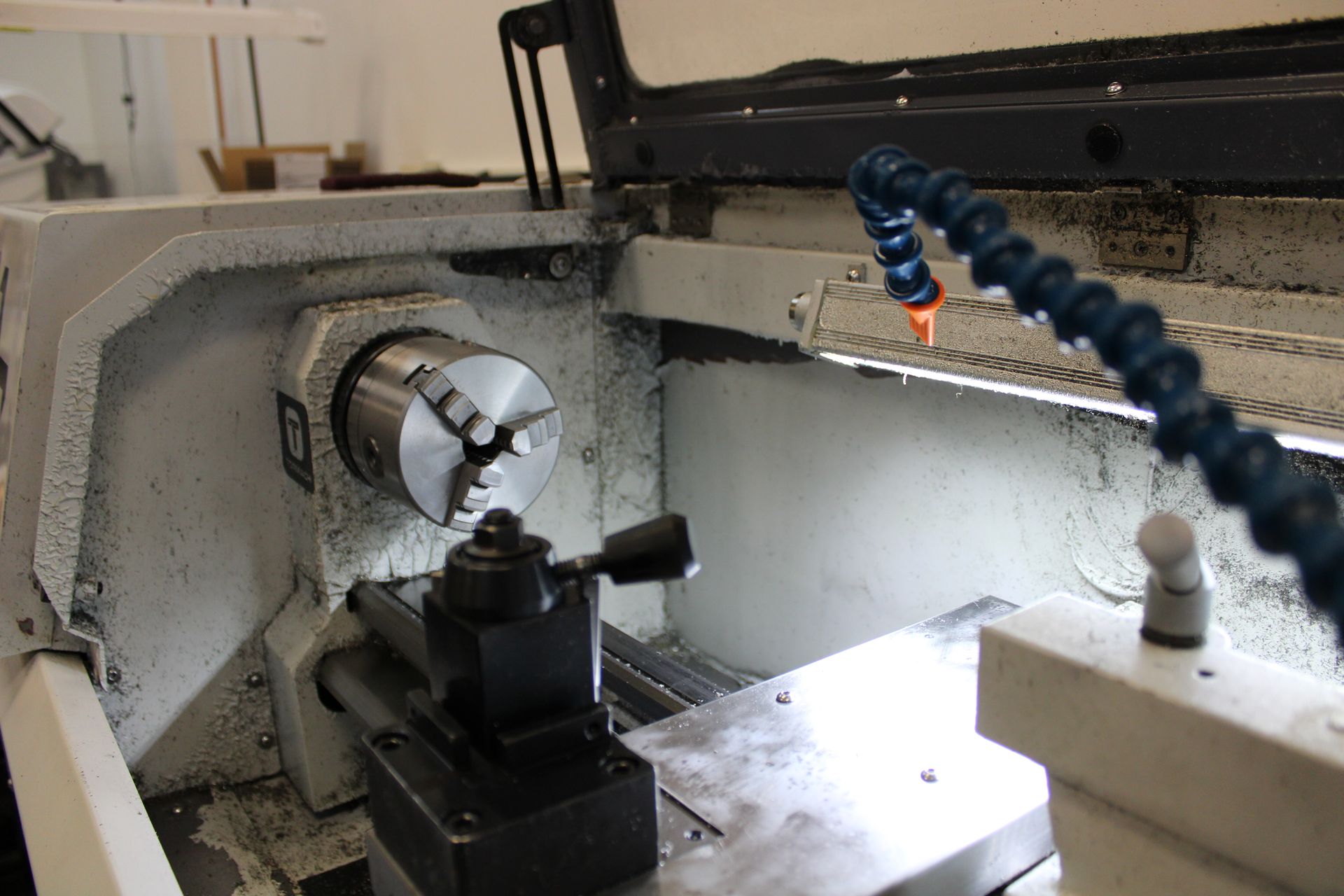

X-Axis: 4.5 in.(114 mm)

Z-Axis: 10 in.(254 mm) with tailstock

Spindle Power:1.5 hp (1.11 kW)

Spindle Speed: 180 to 5,000 rpm

Maximum Workpiece Length: 16 in. (406 mm)

Quick Change Tool Post (Standard)

Mastercam

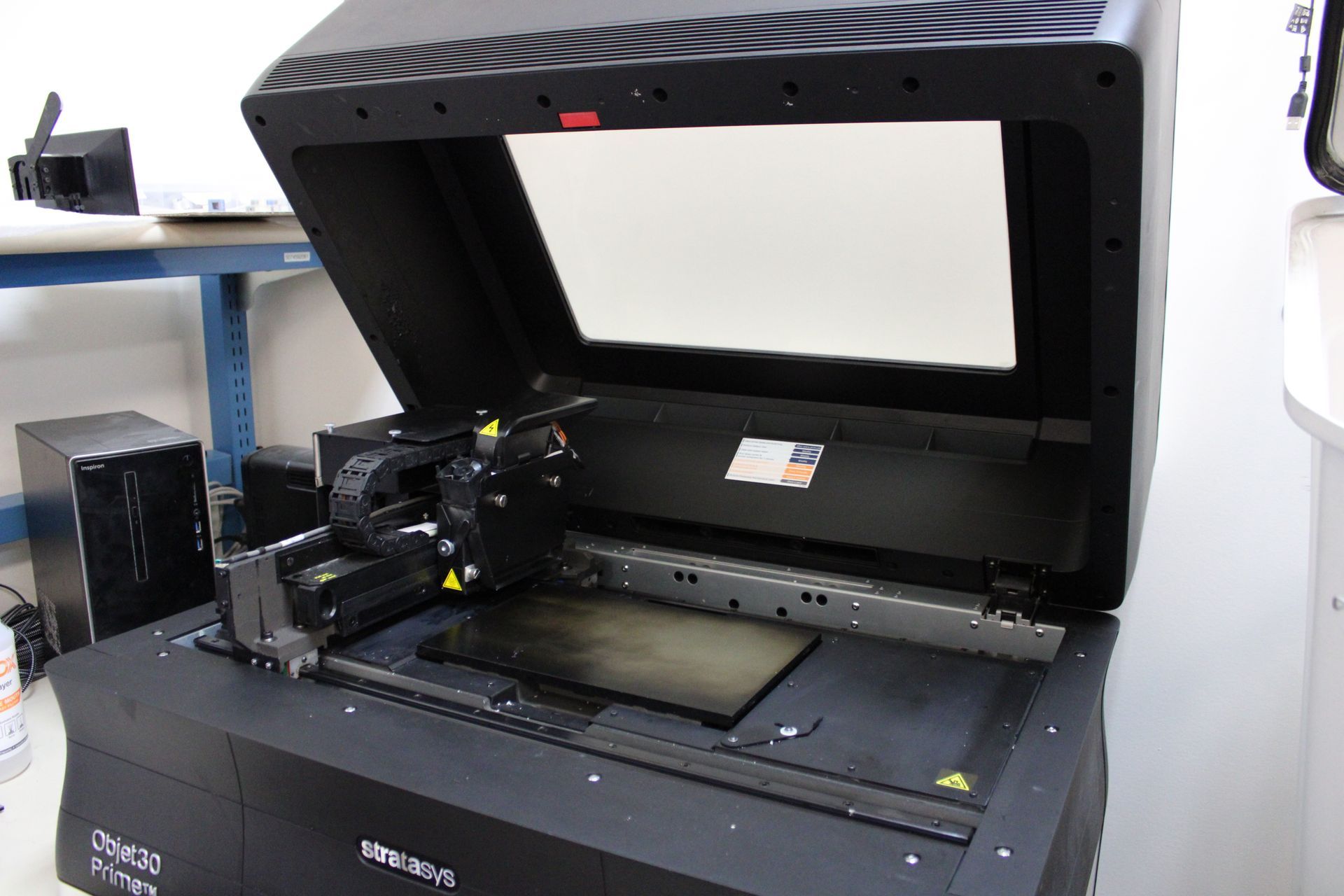

Layer Thickness:  Horizontal build layers range between 16 microns – 36 microns (0.0006 in. – 0.0014 in.)

Build Modes

High Quality: 16 micron (0.0006 in.) resolution

High Speed: 28 micron (0.001 in.) resolution

Fast Draft*: 36 micron (0.0014 in.) resolution

System Size:  82.6 x 60 x 62 cm (32.5 x 23.6 x 24.4 in.)

XY Resolution 600x600 DPI

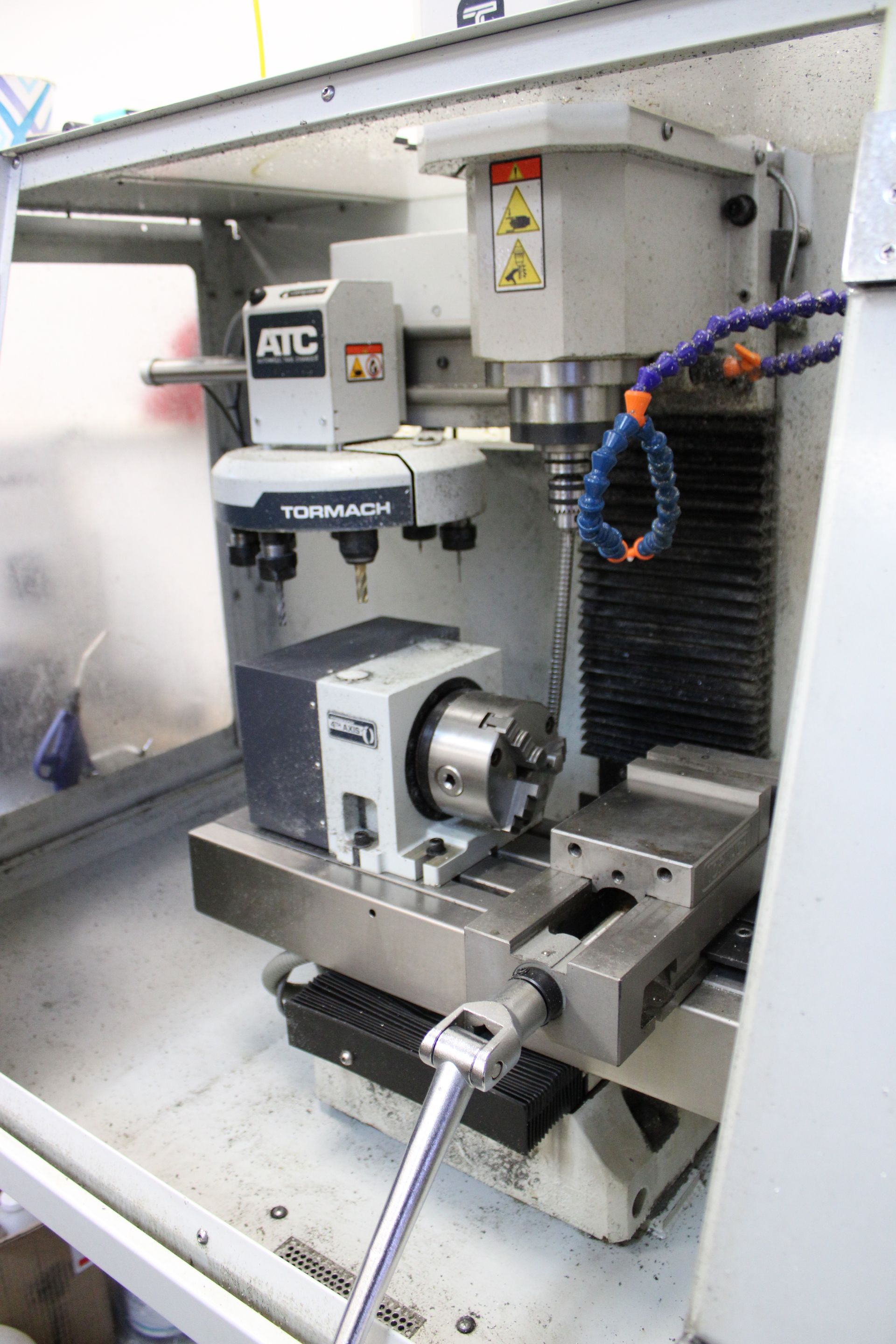

X-Axis 10 in. (254 mm)

Y-Axis 6.25 in. (159 mm)

Z-Axis 10 in. (254 mm)

Spindle Power 0.75 hp (0.56 kW)

Maximum Speed 10,000 RPM

X- and Y-Axis 135 IPM (3.43 m/min)

Z-Axis 110 IPM (2.79 m/min)

Automatic Tool Changer

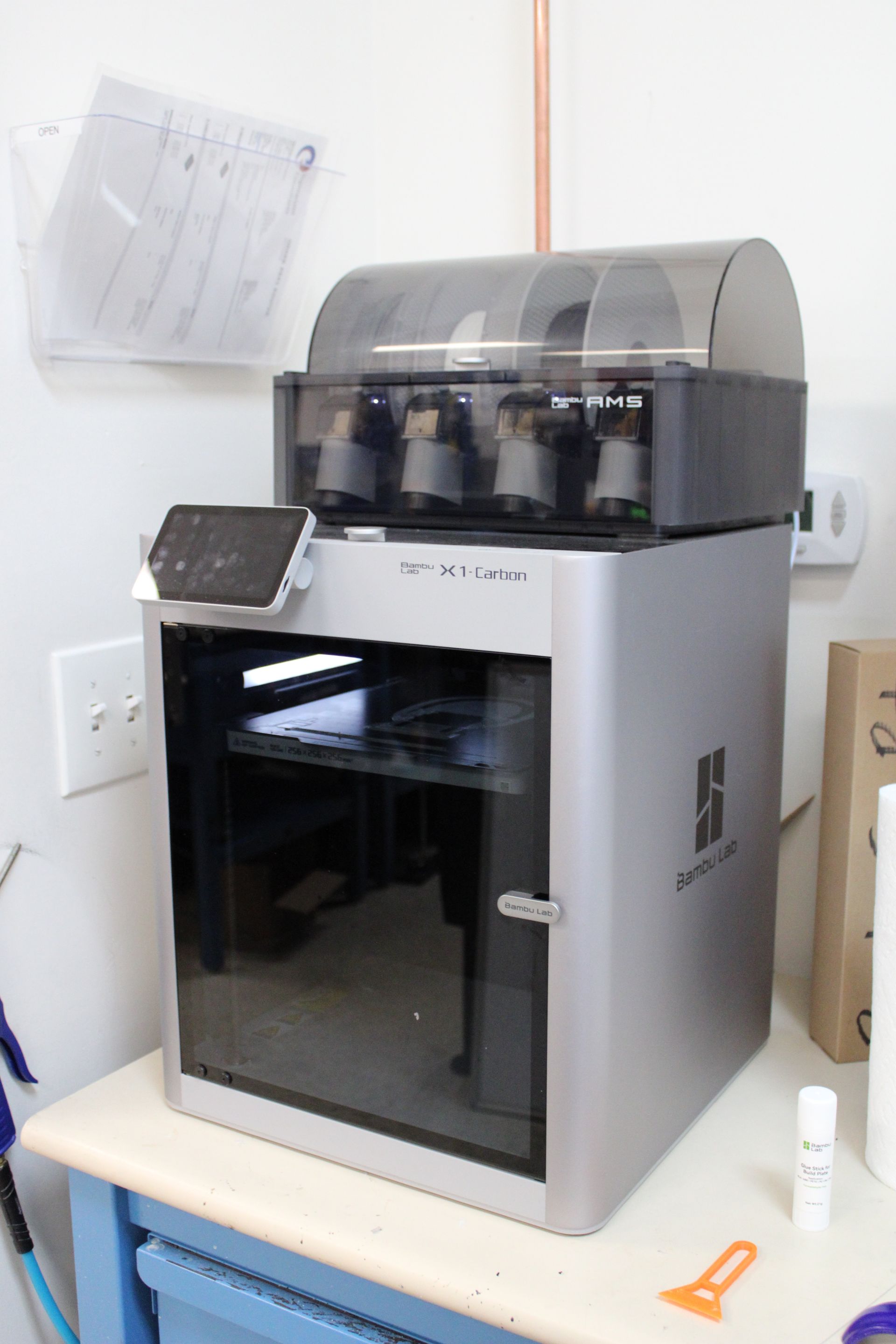

    Multi Color & Multi Material Capability

    High quality printing with 7 μm Lidar Resolution

    High speed CoreXY with 20000 mm/s² Acceleration

    Dual Auto Bed Leveling

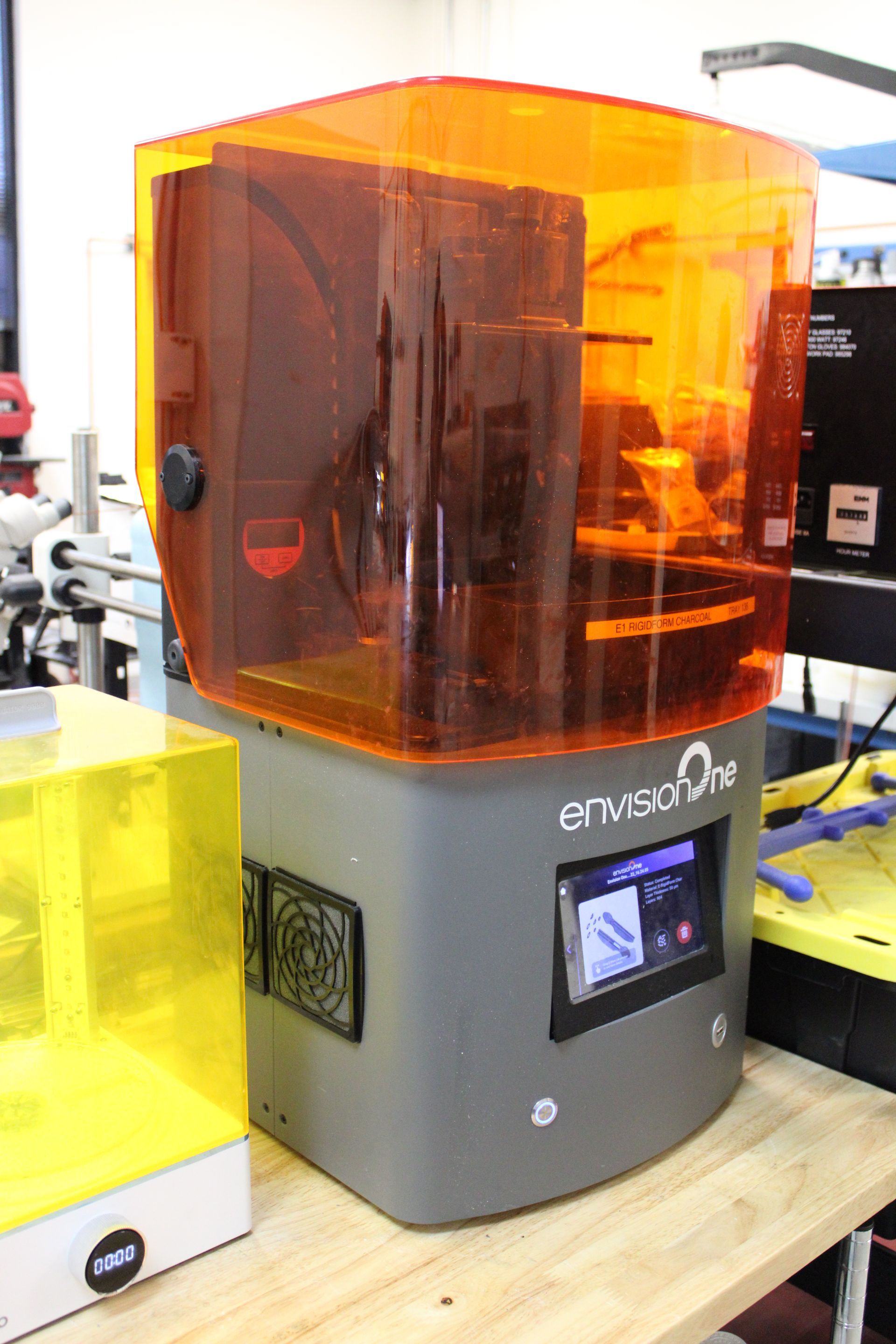

Continuous Digital Light Manufacturing (cDLM) 3D Printer

180 x 101 x 175 mm

Resin / SLA

A high-resolution projector produces ultra-high detail parts at up to 45 mm/hour

Media Throwing Wheel:  6" Diameter with speed range to 20,000 RPM for high velocity impact

Refrigerant:  Liquid Nitrogen at -320º F. at 50 PSIG maximum

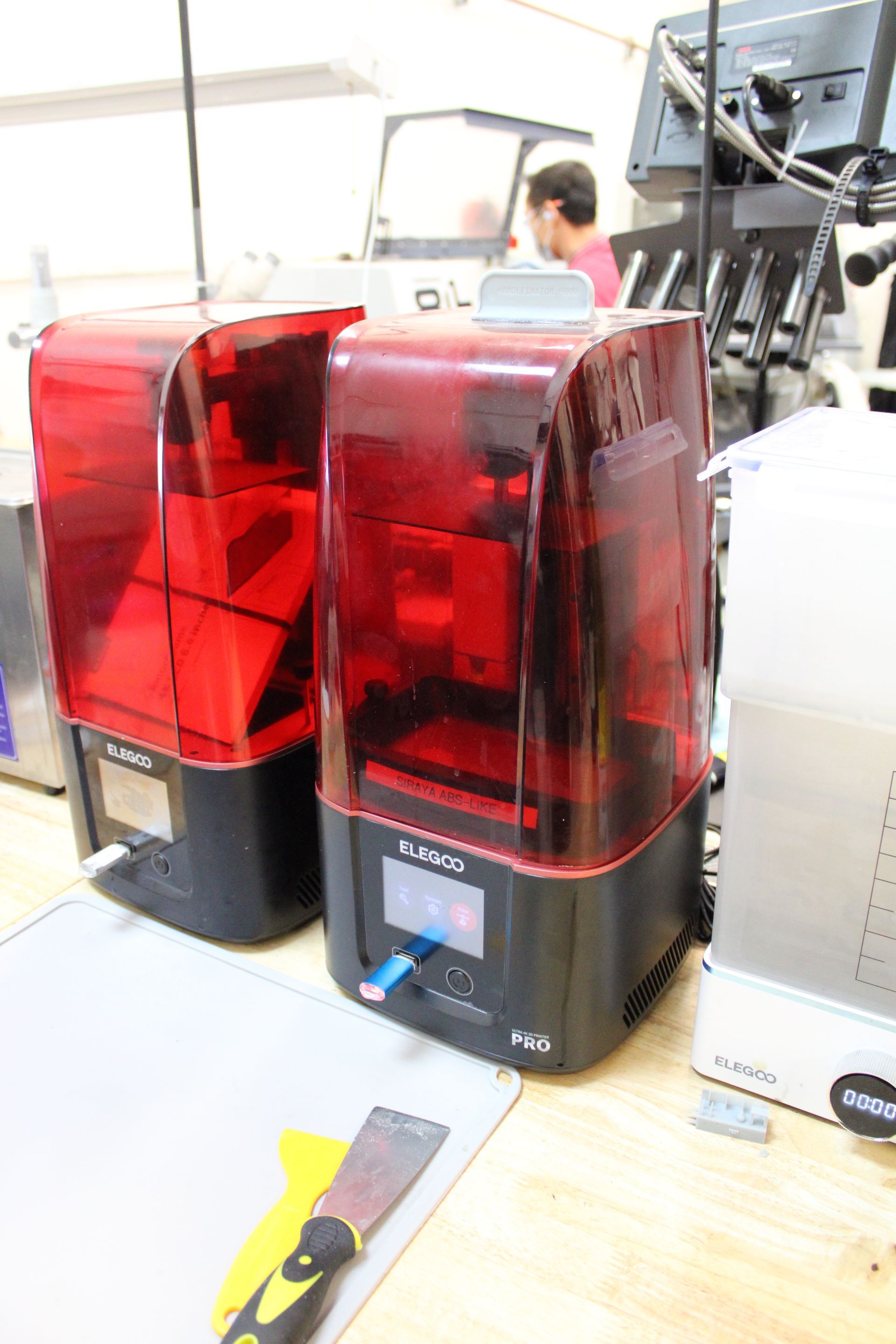

Technology: MSLA

Lightsource: UVLED 405nm

XY Resolution: 4098*2560

Z Axis Accuracy: 0.00125mm

Layer Thickness: 0.01-0.2mm

Printing Speed: 30-50mm/h

Build Volume:

5.647in (L)*3.52in (W)*6.8in (H)

14.343cm (L)*8.96cm (W)*17.5cm(H)

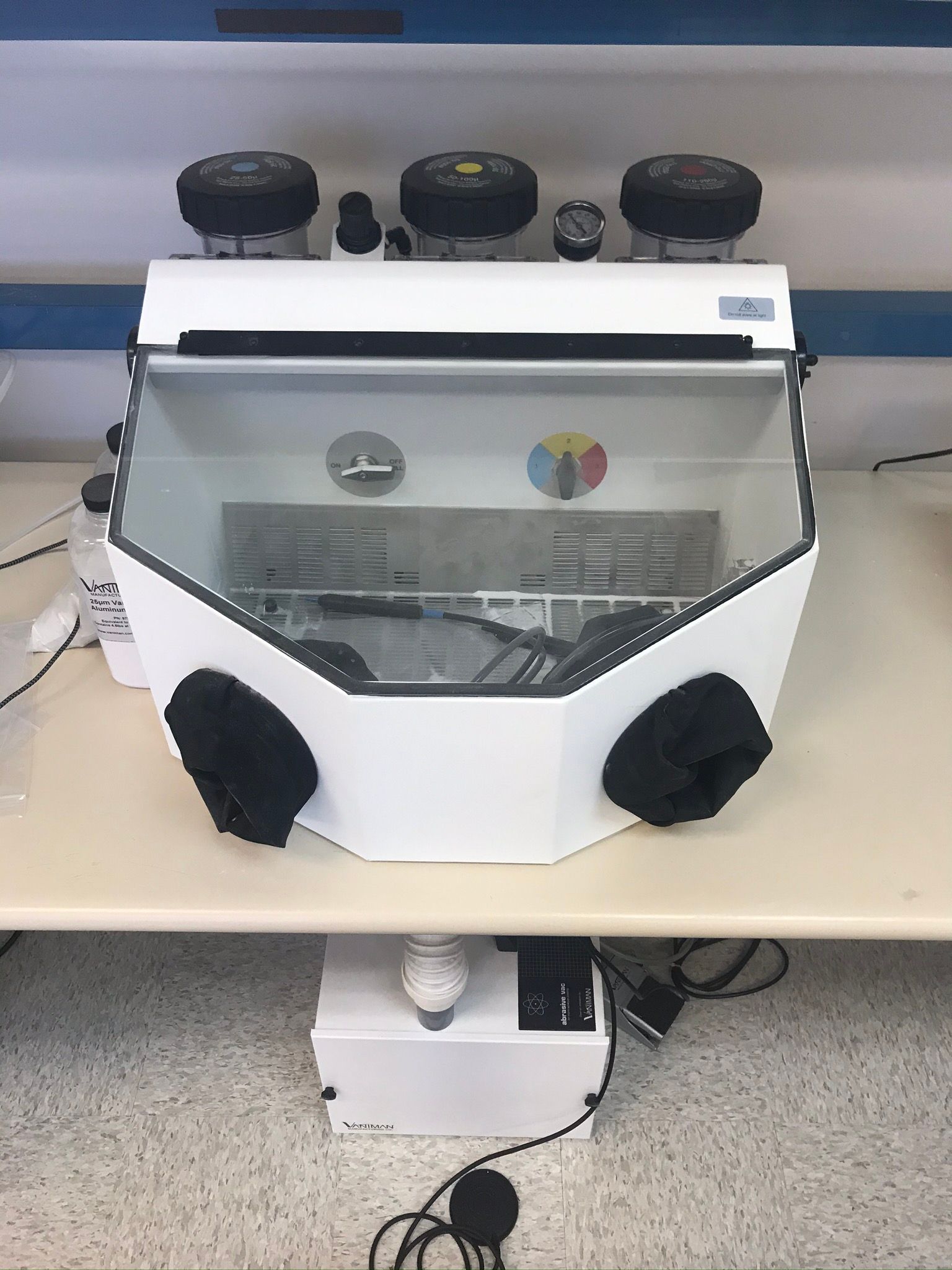

25-50, 50-100, or 110-250 Micron Media for handling small parts

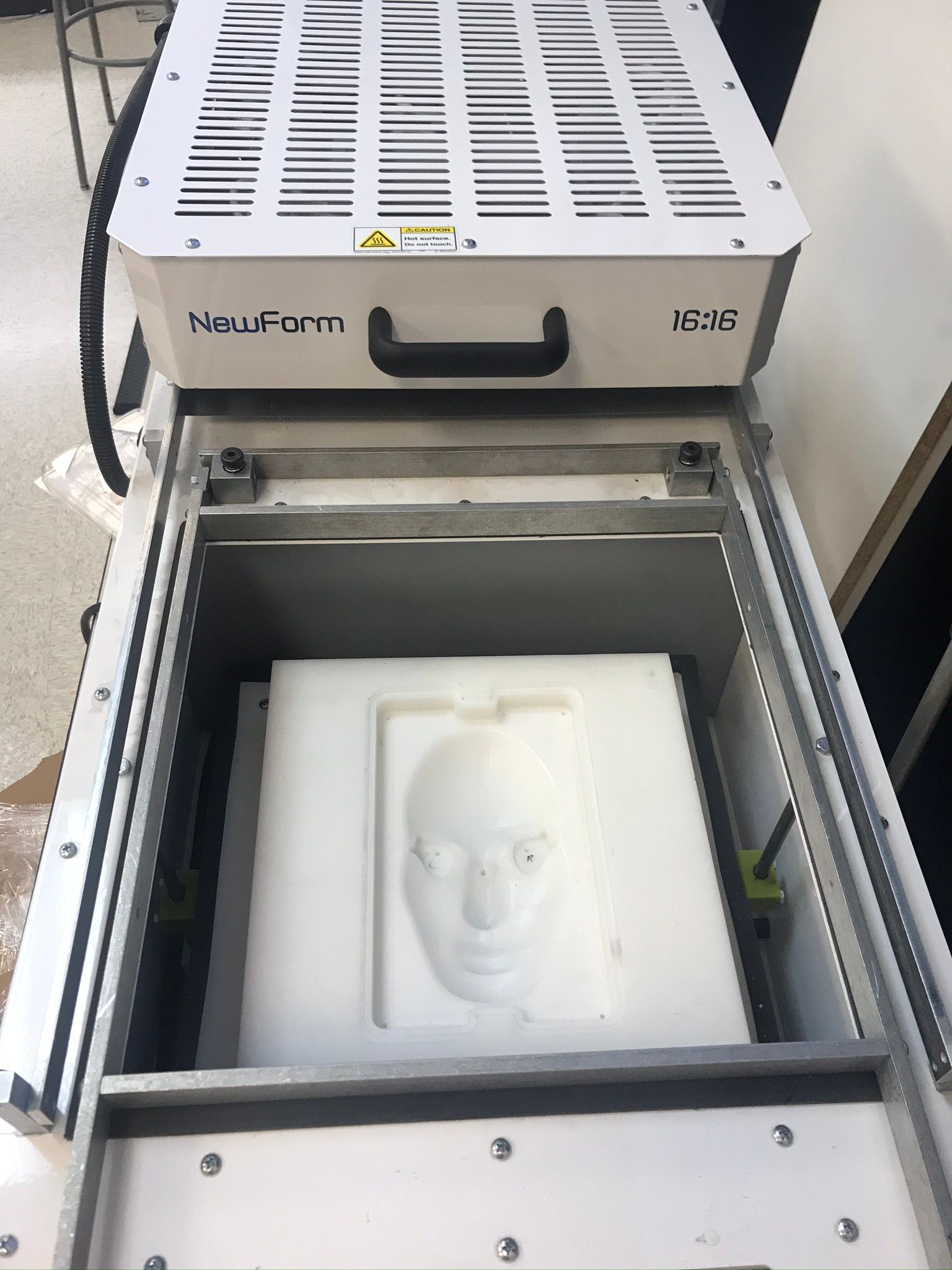

Forming size 16"x16", 0.12" max thickness, 6" max depth

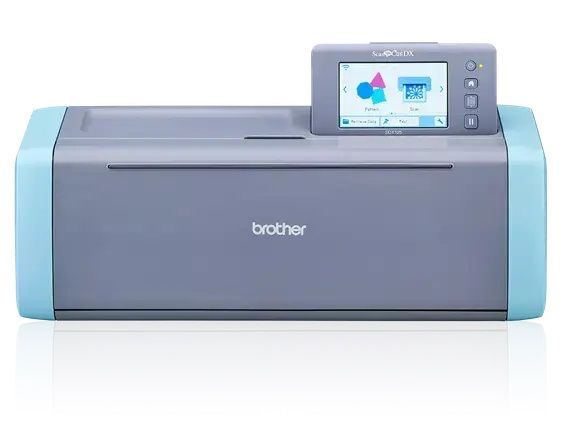

Cutting width:   12 x 12 inches

Media Thickness (Maximum):  3 millimeters

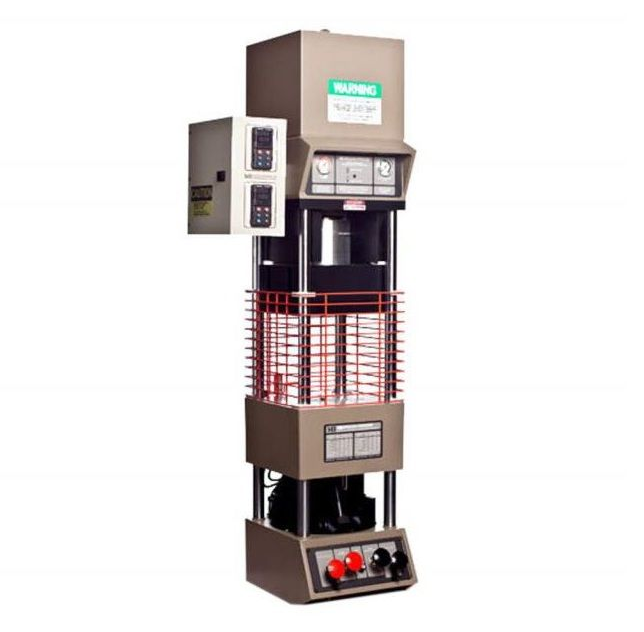

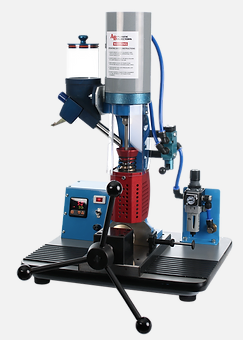

Clamp Force:  4000 lbs

Shot Capacity:  1/4 oz (6 grams)

Injection Press @ 125 psi:  6333 PSI

Temperature Range:  100ºF - 650ºF

Mold Height:  2-1/2"

Maximum Molding Area:  3 sq. inches

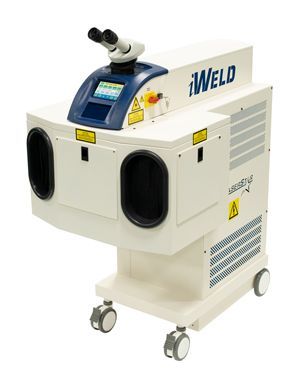

Output Pulse Energy:  0.1 -180 Joules

Maximum Peak power:  10.0kW

Beam Diameter:  0.05mm - 2.00mm

Chamber Dimensions:  20”L x 15”W x 14”H (527mm x 398mm x 355mm)

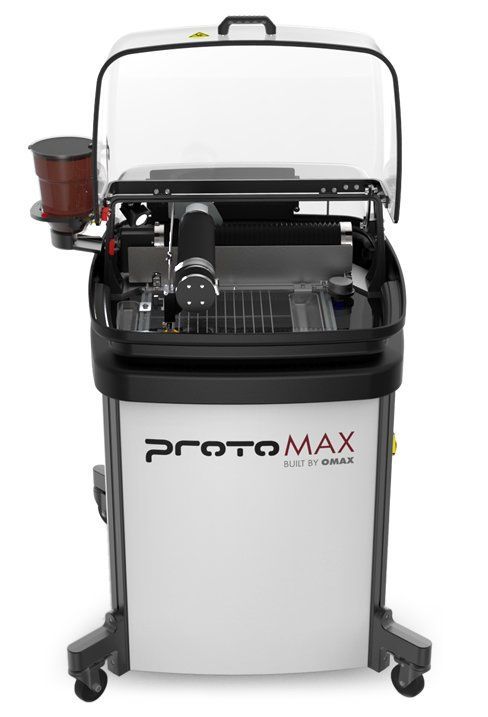

Cutting Area:  12" x 12" (304mm x 204mm)

Max Material Thickness 1.00" (25mm)

Cutting Pressure:  30,000 psi (2,068 bar)

High Pressure Water Flow Rate:  0.2mm (0.95 lpm)
